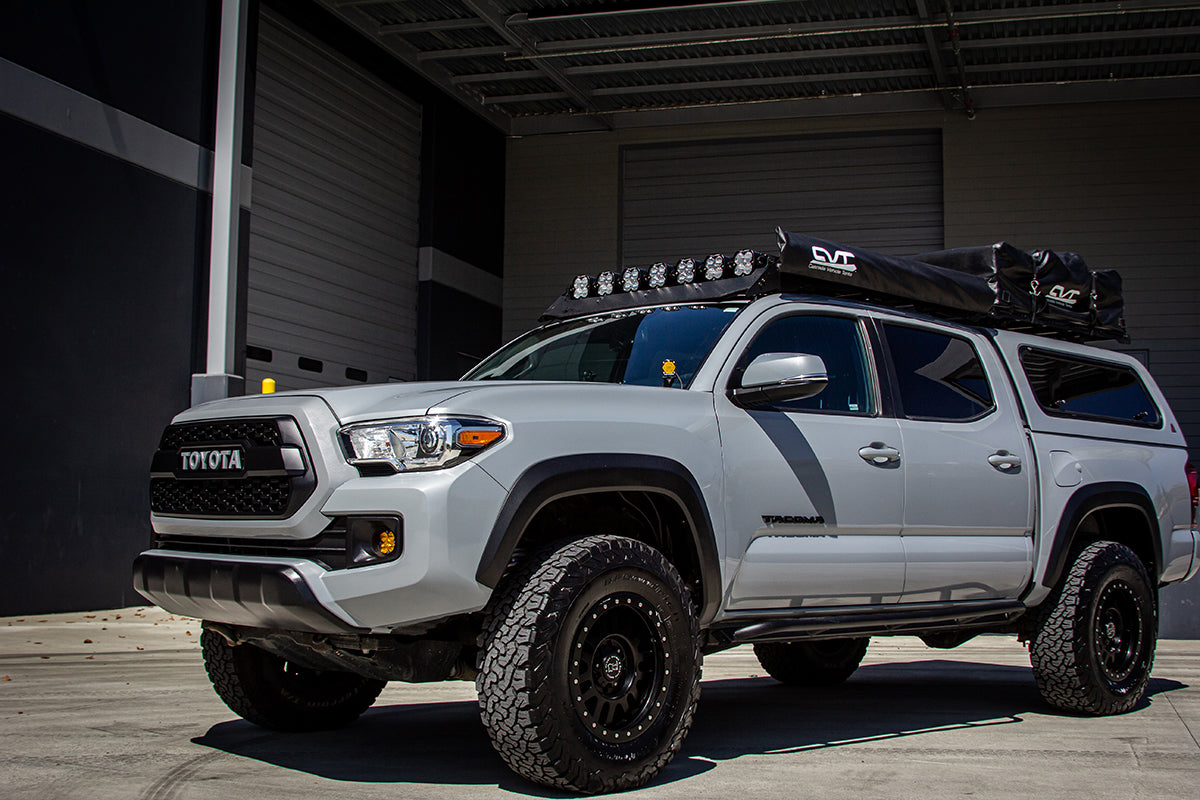

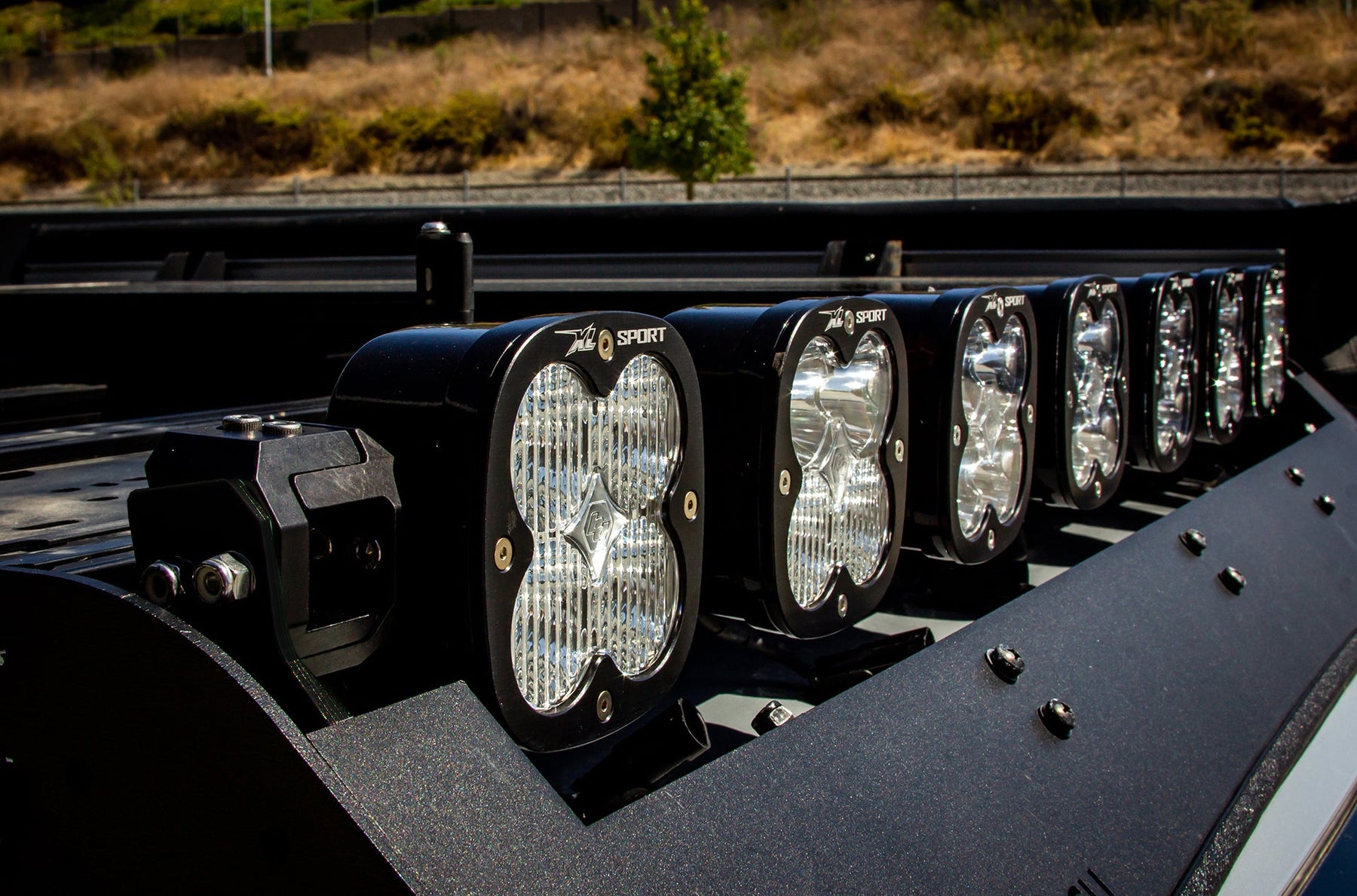

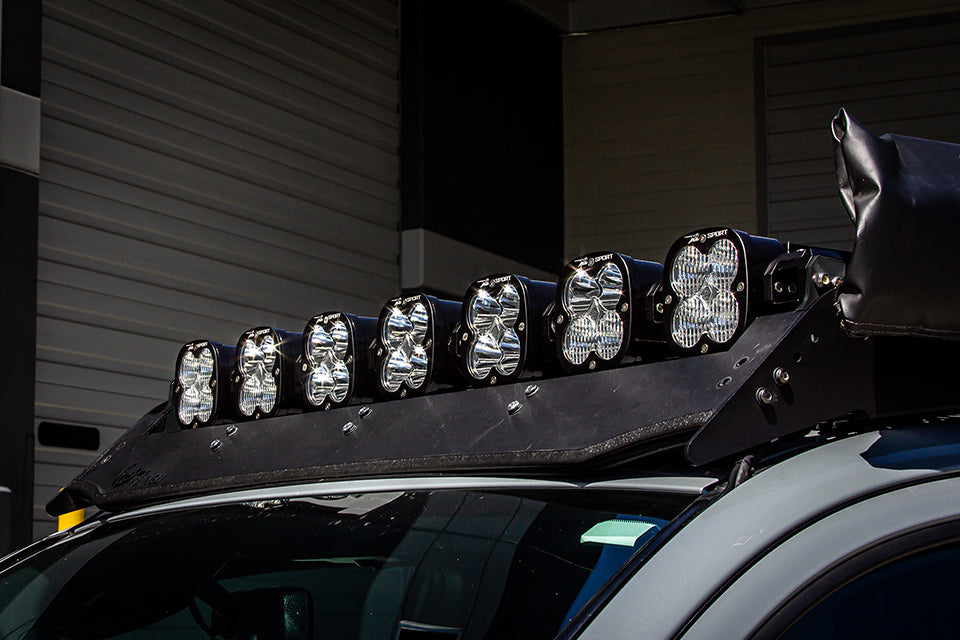

Turn night into daylight with the Prinsu Roof Rack, 7 XL Linkable Kit. If you’re mounting an LED light bar on a Prinsu rack, this turnkey kit has you covered for serious nighttime performance. Note: If you didn’t purchase a rack with the 40" Light Bar cutout option, we’ve included instructions on how to cut your existing panel.

This kit uses our 7 Light XL Linkable kit to deliver a crisp 22,050 lumens and includes Brackets proprietary to Prinsu’s rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards. This is an all-inclusive package that will complement your Prinsu rack while delivering impressive night-time lighting performance.

Key Features & Design

• Turnkey lighting solution using the 7 Light XL Linkable kit to deliver 22,050 lumens.
• Includes Prinsu-specific Brackets (304 Stainless Steel) and all required hardware, a relay harness for the XL Linkable, and Rock Guards.
• All-inclusive kit that complements your Prinsu rack and delivers serious night-time performance.
• Note: If you did not purchase a rack with the 40" Light Bar cutout option we have included instructions on how to cut your existing panel.
• XL Linkable Harness with adjustable patterns: Driving/Combo, Wide Cornering, and High Speed Spot. Driving/Combo provides maximum trail coverage with both Wide Driving (44°) and spot (6°) optics for near-field and distance (Lighting Zone 3). Wide Cornering offers a 44° horizontal beam for cornering and dust/fog conditions (Lighting Zones 1 & 2). High Speed Spot focuses a longer, narrower 6° beam for distance (Lighting Zones 4 & 5).

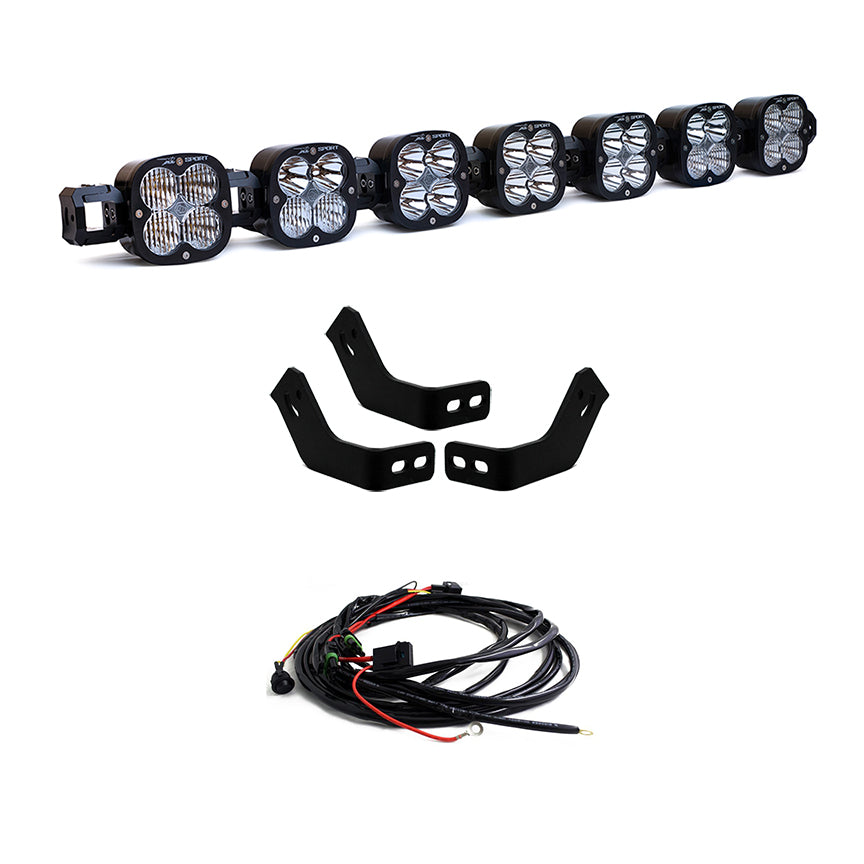

• Includes: x3 XL Sport Spot LED Light, x2 XL Sport Driving/Combo LED Light, x2 XL Sport Wide Cornering LED Light, x7 XL Sport Rock Guards, Pre-load Center Bracket, Prinsu Specific Brackets (304 Stainless Steel), XL Linkable Harness.

Baja Designs Features

• Satisfaction Guarantee – 30 Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService® – Replaceable Lenses And Optics
• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

• Lumens: 22,050 Utilizing 28 LEDs
• Wattage/Amps: 182W / 14A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)
• Application: Any Prinsu Rack
• Includes: x3 XL Sport Spot LED Light, x2 XL Sport Driving/Combo LED Light, x2 XL Sport Wide Cornering LED Light, x7 XL Sport Rock Guards, Pre-load Center Bracket, Prinsu Specific Brackets (304 Stainless Steel), XL Linkable Harness
• Adjustability Patterns: Driving/Combo (Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)); Wide Cornering (44° flattened horizontal beam for cornering, dust and/or fog conditions (Lighting Zones 1 & 2)); High Speed Spot (6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights (Lighting Zones 4 & 5)).
