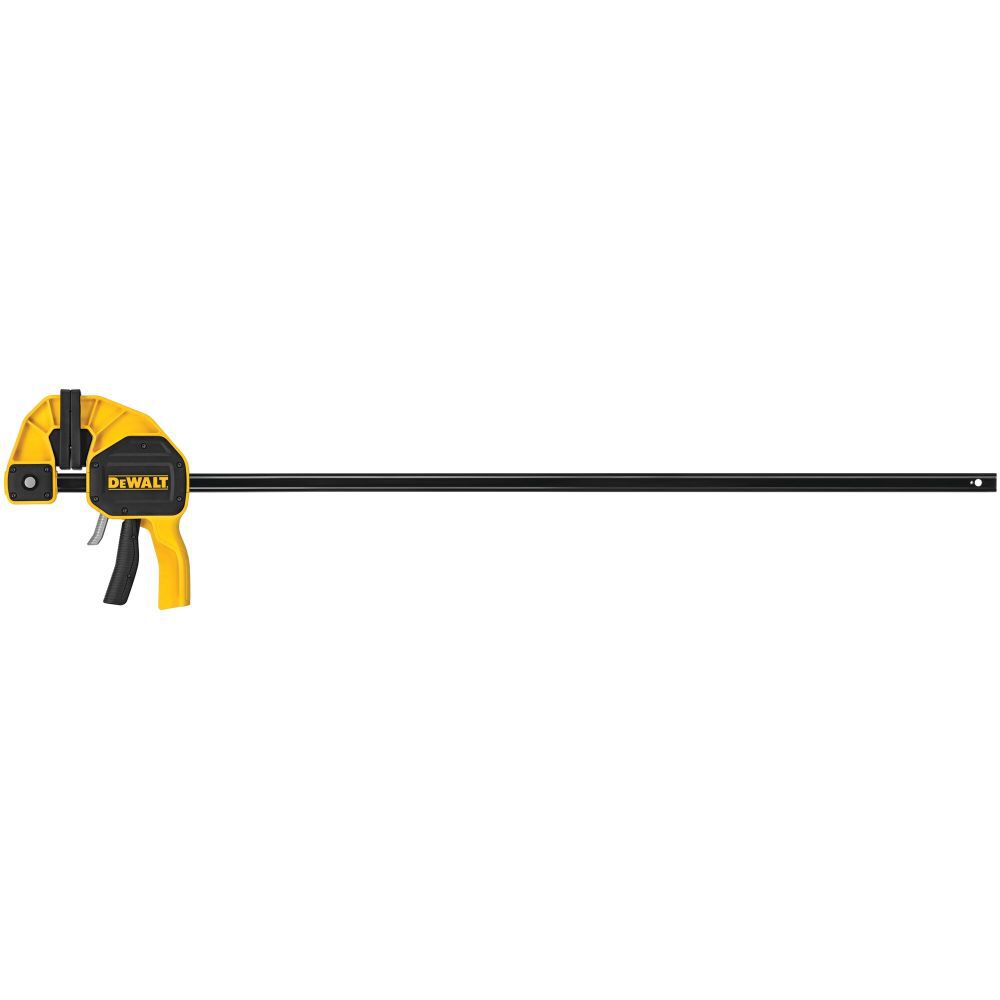

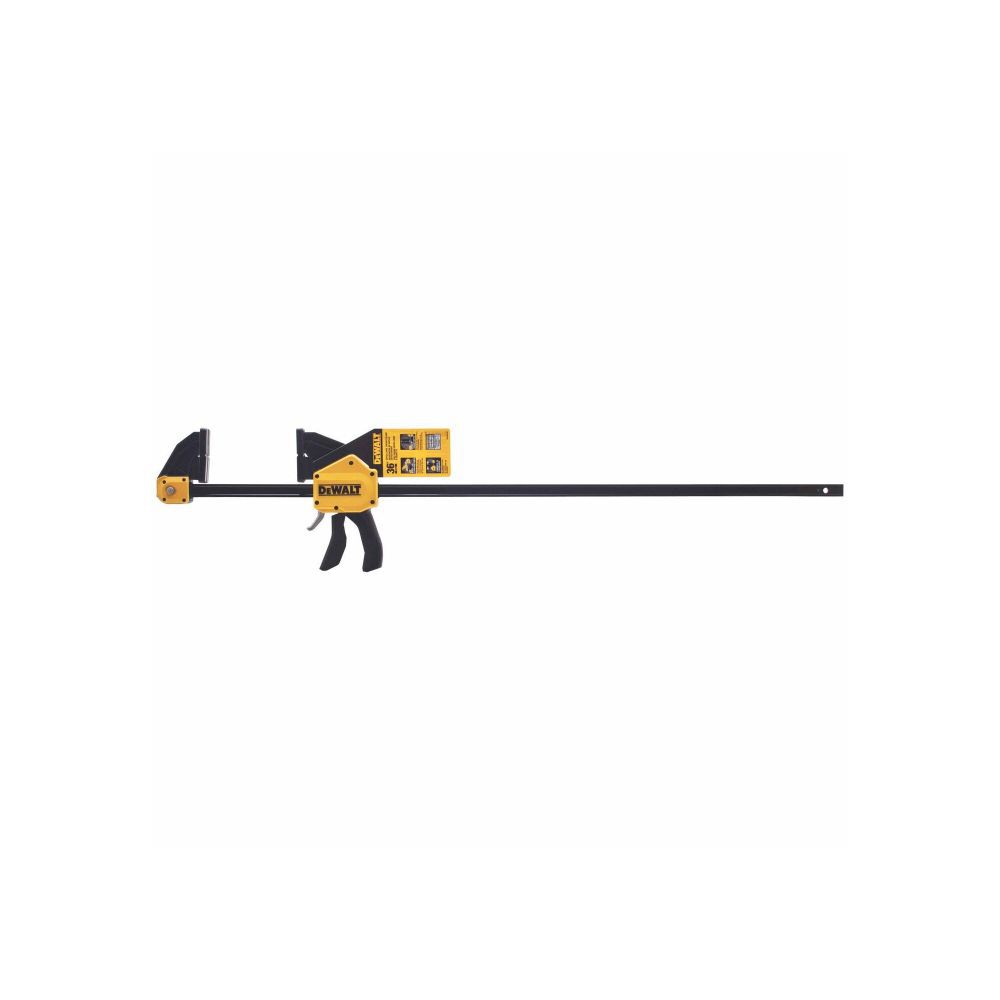

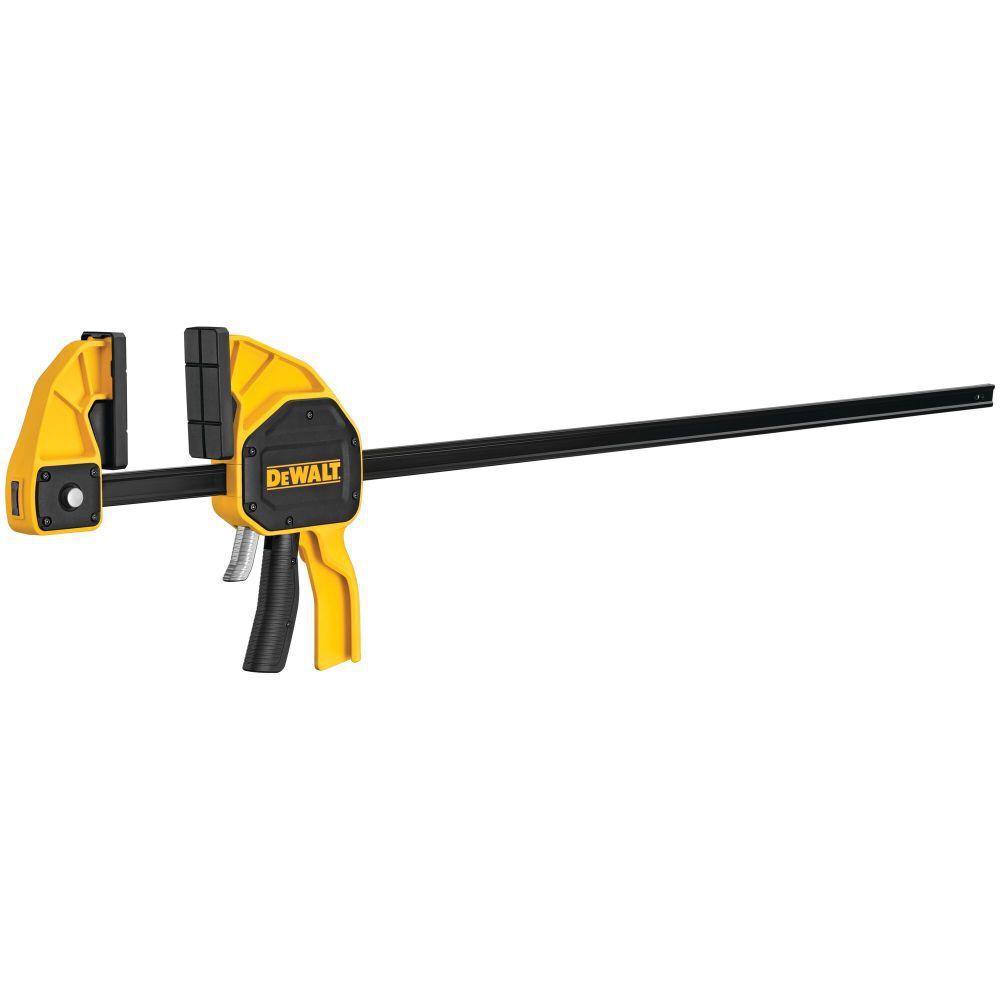

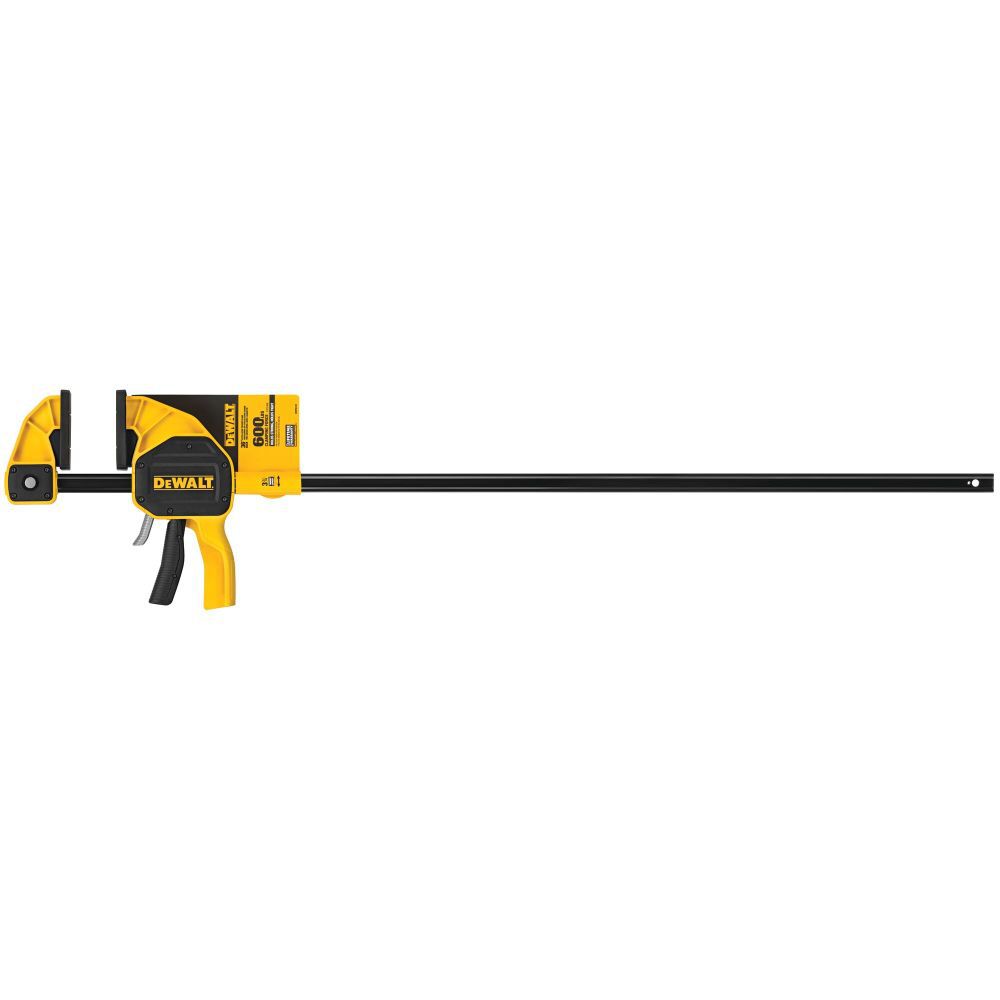

Meet the DeWalt DWHT83187 36" Extra Large Trigger Clamp — a heavy-hitting, one-handed clamping workhorse built for pros who want dependable grip and quick adjustments without a spectator sport.

Key Features & Design

• 36" extra-large bar clamp for broad workpieces and big projects, with a robust, durable build that stands up to the job site
• Reinforced nylon body and heat-treated steel bar deliver lasting strength and reliable performance
• 600 pounds (270 kg) of clamping force for a secure hold on even stubborn assemblies
• 3-3/4" throat depth to reach into tight spots while keeping your work aligned
• Quick change button enables easy conversion to a spreader when you need spreading power instead of clamping force
• Removable jaw pads help reduce marring on delicate surfaces and project pieces
• One-handed operation for fast adjustments, plus quick release mechanism for rapid re-positioning
• Full-face removable jaw pads prevent damage to parts and keep your edges pristine
• Safety stop feature adds peace of mind on busy job sites
• Materials include Bar Material: Black Oxide Carbon Steel and Body Material: Plastic
• Applications ideal for General Contractors, Cabinet Makers, Cabinet Installers, and Carpenters

Specifications

• Average Clamping Force [Kg] 270
• Bar Length [mm] 1140
• Bar Material Black Oxide Carbon Steel
• I-Beam Bar Thickness [mm] 7
• Body Material Plastic
• Clamping Capacity [mm] 935
• Clamping Force [Kg] 270
• Clamping Force [lbs] 600
• Clamps and Vices Product Type Trigger Clamp / One Handed Bar Clamp
• Handle Material Plastic
• Has Quick Release Mechanism? Yes
• Has Safety Stop? Yes
• Jaw Depth [mm] 90
• Jaw Pads Material Non-Marring
• Jaw Pad Type Fix
• Jaw Width [mm] 40
• Max. Clamping Force [Kg] 270
• Max. Jaw Opening [mm] 935
• Packaging Hang Tag Pad Dimensions l x w x h [in] 90mmx40mmx10mm
• Product Dimensions w/o Packaging l x w x h [in] 1145mmx270mmx45mm
• Product Height [mm] 45
• Product Length [mm] 1145
• Product Weight [g] 2000
• Product Weight [Kg] 2
• Product Width [mm] 270
• Spreading Capacity [mm] 1125
• Spreading Function Yes
• Sustained Clamping Force [Kg] 270
• Throat Depth [in] 3-3/4
• Throat Depth [mm] 95
• Additional Features One-handed operation for ease of use
• Quick change button allows for easy conversion to a spreader
• Warranty 1 Year Limited Warranty
• Warranty Note We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

Designed to exceed expectations, this clamp handles demanding tasks with a mix of toughness and practicality. It’s not just a tool—it's that dependable teammate you don’t have to babysit on the job site.
